Pressure Module
IPM In-House Packaging Process Capabilities

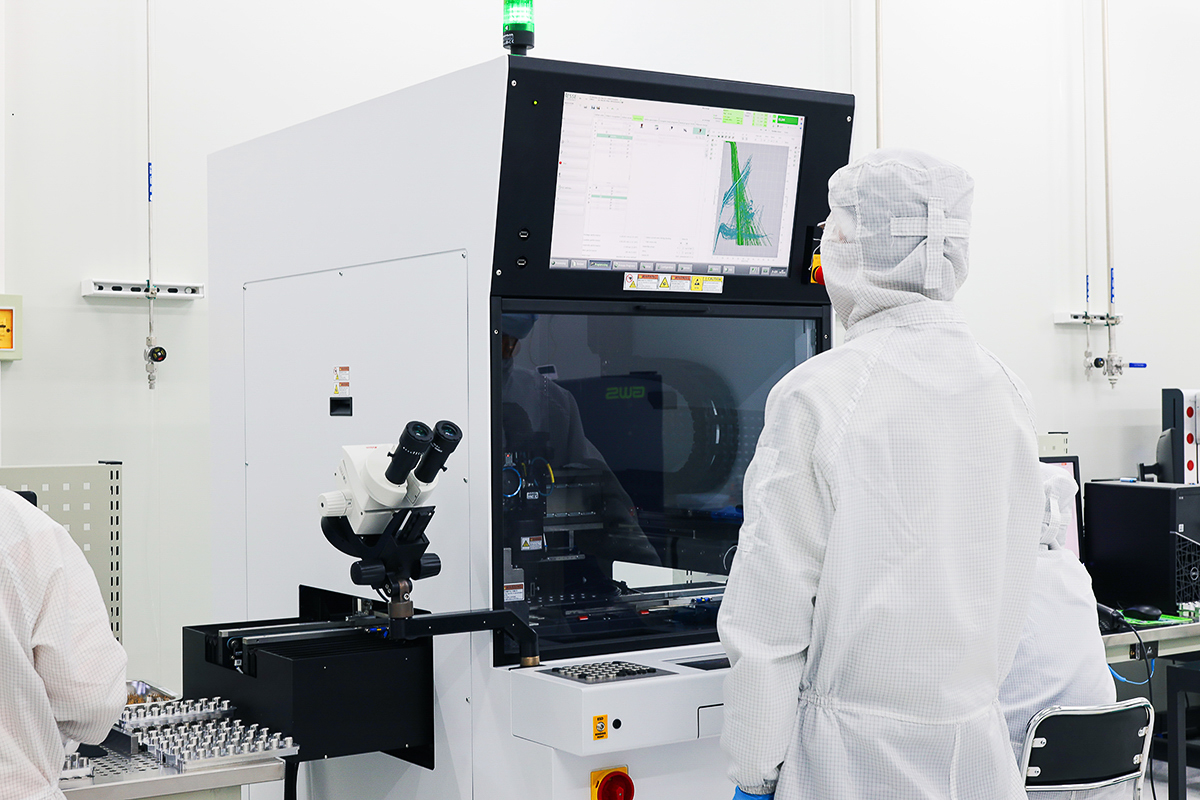

• Automatie Die Pick & Placement
• Automatie Wire Bonding
• Pull & Shear Testing
• CNC Precision Machining
• Membrane Stamping
• TIG, Resistor. Laser Weiding
• Pressure & Temperature Cycling
• Performance Characterization
• Helium Leak Testing
• Oil Filling
• Climatic Aging

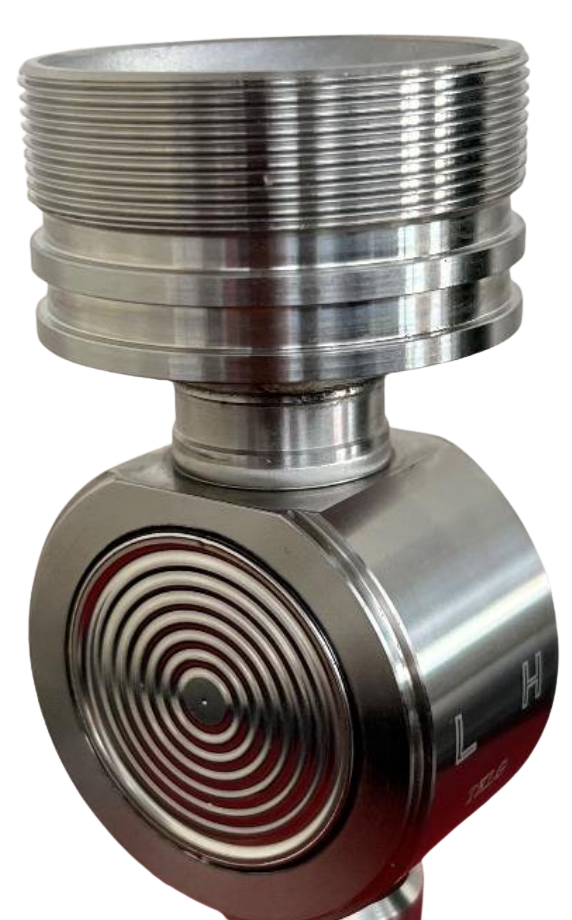

Pressure Calibrated Modules

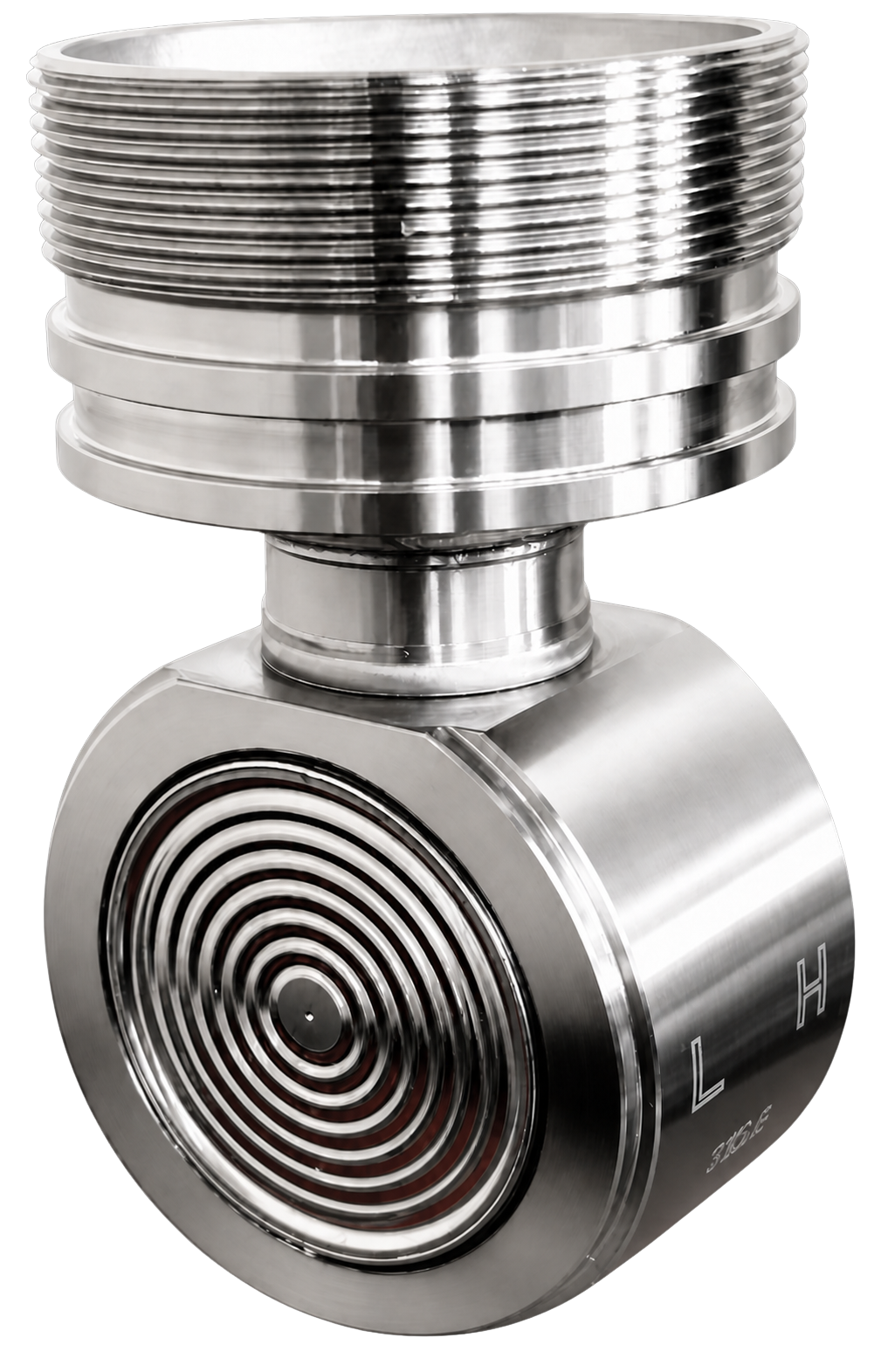

IPC products are digitally pressure and temperature calibrated modules. Customized to perfectly suit the fast and easy integration into larger pressure devices and systems.
• Analog and/or digital output signals
• Different pressure connections available (G1/8″,1/4″NPT. .. )
• Temperature-compensated output
• Fully customizable (pressure & temperature range, electrical
connection. pressure port etc.)
Key Features:
• Relative, differential or absolute pressure
• Analog & digital output
• Temperature compensated
• Flexible configuration
• All welded pressure port for high media compatibility
Parameter
Range
Max. Value
Total (Standard)
-20 … 85°C
1% Full Scale
Parameter:
Total (Standard)
Range:
-20 … 85°C
Max. Value
1% Full Scale
Total (Industrial)
-0… 70°C
0.5% Full Scale
Parameter:
Total (Industrial)
Range:
-0… 70°C
Max. Value
0.5% Full Scale
Total (Prime)
-0… 50°C
0.25% Full Scale
Parameter:
Total (Prime)
Range:
-0… 50°C
Max. Value
0.25% Full Scale
Room
25°C
0.25% Full Scale
Parameter:
Room
Range:
25°C
Max. Value
0.25% Full Scale
IPM10 Series – High-Precision Pressure Sense Modules
Absolute, Gage, and Differential Silicon Pressure Modules
The IPM10 series by Insenso is a compact, high-performance solution for precise pressure measurement. Designed for integration into demanding industrial and medical applications, these modules combine cutting-edge MEMS technology with long-term stability and minimal hysteresis.
Key Features
- Based on IPD10 high-precision MEMS die
- Ultra-low hysteresis for pressure and temperature
- Fast response time
- High-impedance Wheatstone bridge
- Pressure-proportional analog output
- Integrated discrete PT1000 sensor for temperature monitoring or compensation
- Excellent long-term stability and repeatability
Available Pressure Ranges
- 40 mbar
- 100 mbar
- 400 mbar
- 1 bar
- 4 bar
- 10 bar
- 40 bar
- Custom ranges on request
Applications
- Industrial control systems
- Medical instrumentation
- High-precision measurement devices
- Vacuum and dry air systems
- Oil-filled pressure transmitters
- Non-corrosive gas environments
Technology
- Piezo-resistive MEMS sensing element
- Glass or silicon backplate
- Absolute, gage, and differential types
- Optimized for long-term accuracy in dynamic environments
Form Factor & Integration
- Die sizes from 2.05 mm to 4.65 mm
- Compact layout for space-limited applications
- Bondpad configuration for straightforward PCB mounting
- Operating temperature range: -40°C to +125°C
Why IPM10?
With over 30 years of MEMS experience, Insenso delivers reliable sensor components tailored to the highest standards. The IPM10 series gives OEMs full control over their pressure measurement systems — from precise analog output to flexible integration options.
Insenso: Providing Certainty
